A Waste Water Treatment Plant is a plant made up of several single water treatment technologies, which address the specific wastewater treatment requirements for each plant. Each type of wastewater, depending on the type of production, will be different individual treatment technologies whose combination creates a complete water treatment system.
The composition of a wastewater treatment system is determined by the characteristics of the wastewater and the discharge regulations of the locality, plant, or facility. However, a typical wastewater treatment system generally includes the following processes:
- Mechanical treatment process: Separating garbage, settling sand, separating oil and grease, etc., removing garbage, residue, grease, etc. from wastewater.
- Chemical treatment process: pH neutralization, flocculation-flocculation-sedimentation, flotation, etc. assist to adjust pH, remove suspended residues, metals, inorganic substances.
- Biological treatment process: Anaerobic, anaerobic, aerobic, etc. assist to remove organic pollutants.
Water filtration is also an important step in the wastewater treatment system. It helps to remove any remaining suspended solids from the wastewater, based on the regulations regarding solids content in the discharged water.

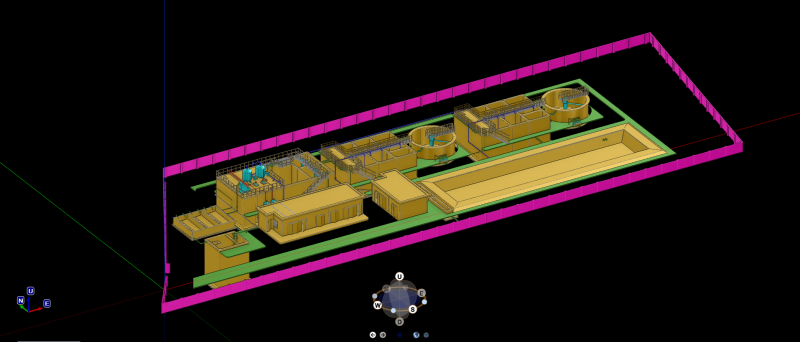

The Waste Water Treatment Plant in Cam Le District, Da Nang City is modeled on AVEVA E3D software with various items, structure, reinforced steel for concrete, working floor system, chemical tank. , process tank, pipeline, electrical system, rack, hanging to ensure load-bearing for the pipe system, cable ladder, etc.(Join the PEMOSE COURSE to gain knowledge about AVEVA E3D).

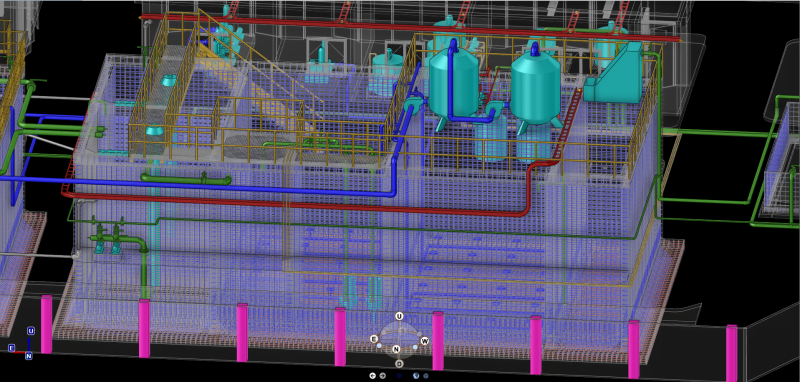

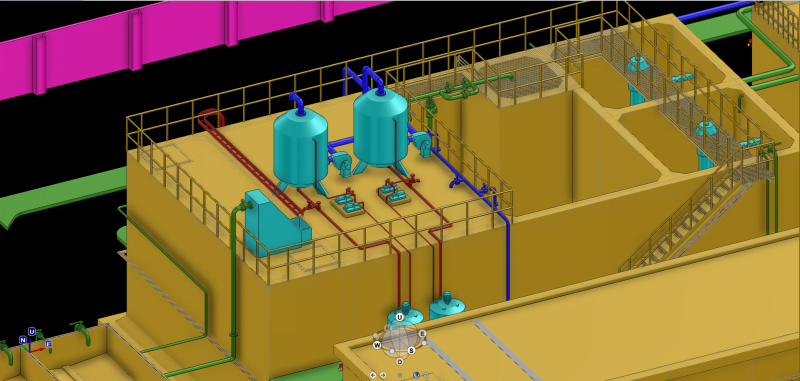

Area 1: oil and sand separation tank, conditioning tank, flocculation tank, settling tank
This area includes garbage separator, chemical treatment tank, biological treatment tank, chemical pump and chemical tanks, mixed exhaust fan

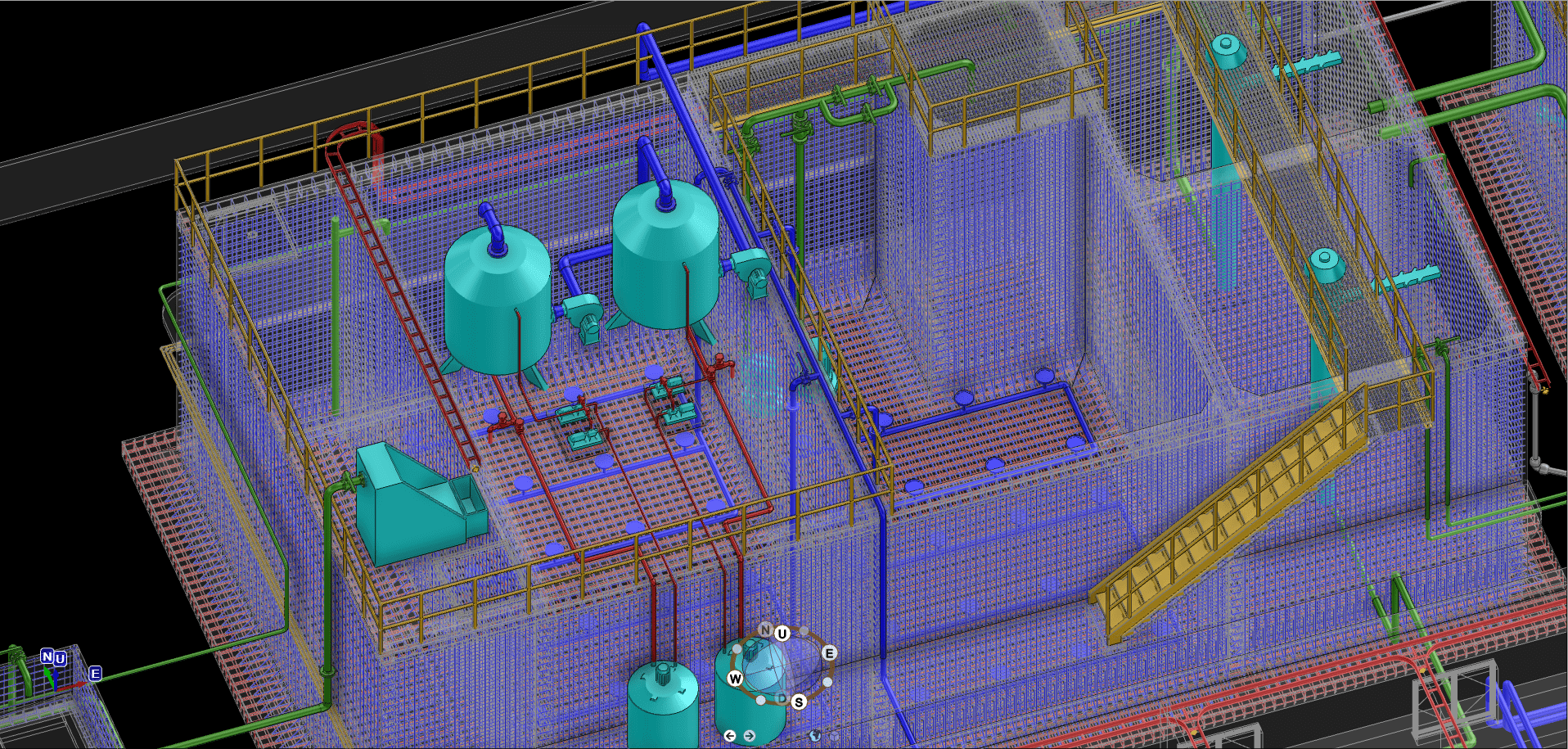

Rebar for concrete tank

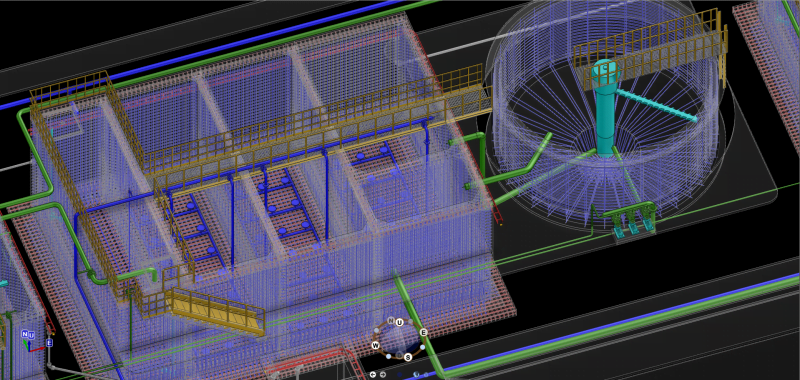

Areas 2, 3: Anoxic tanks, aerobic biological tanks, settling tanks and slow filtration tanks
These areas consist of piping system, air blow disc system.

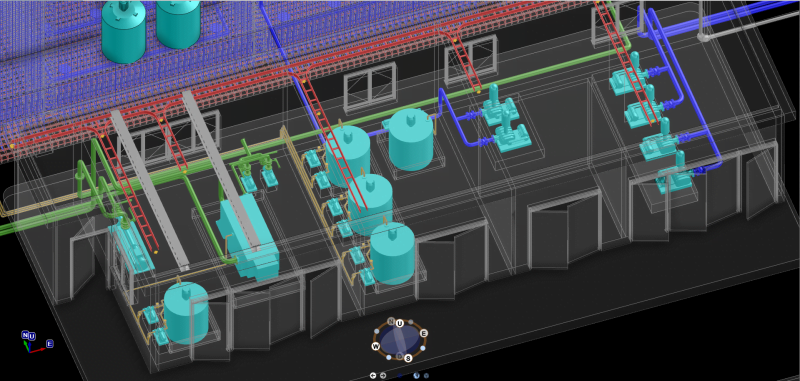

Area 4: including chemical tanks and pumps, mud presses, air blower system.

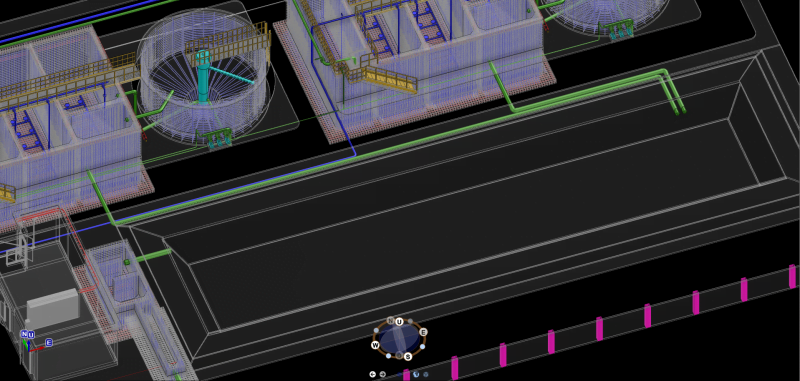

Area 5: Aquarium tank
Ladder system and cable trays for electrical conductors
