Our company’s services include detailed design for the Hull and Outfitting

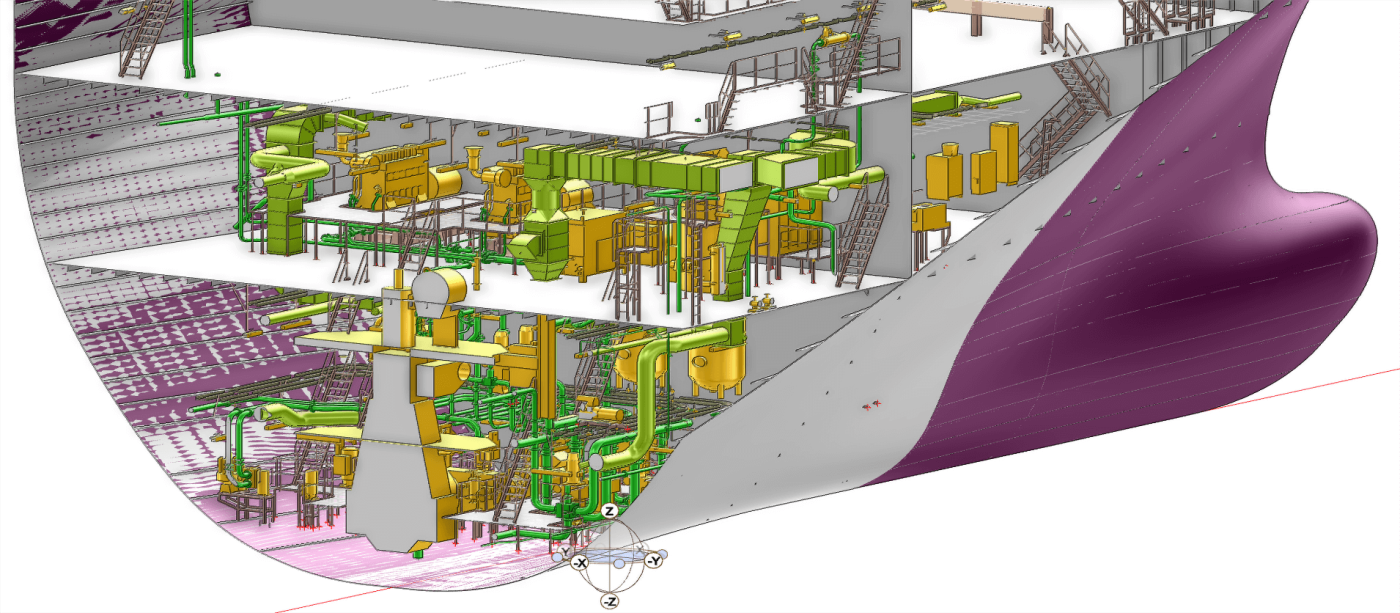

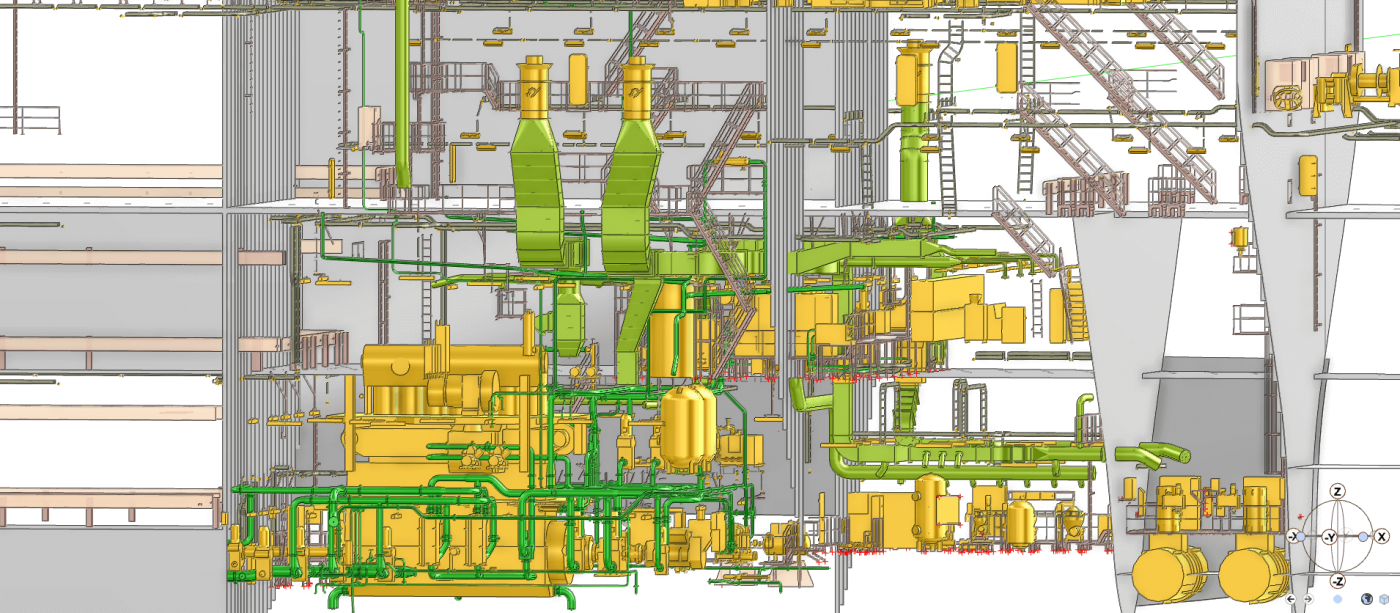

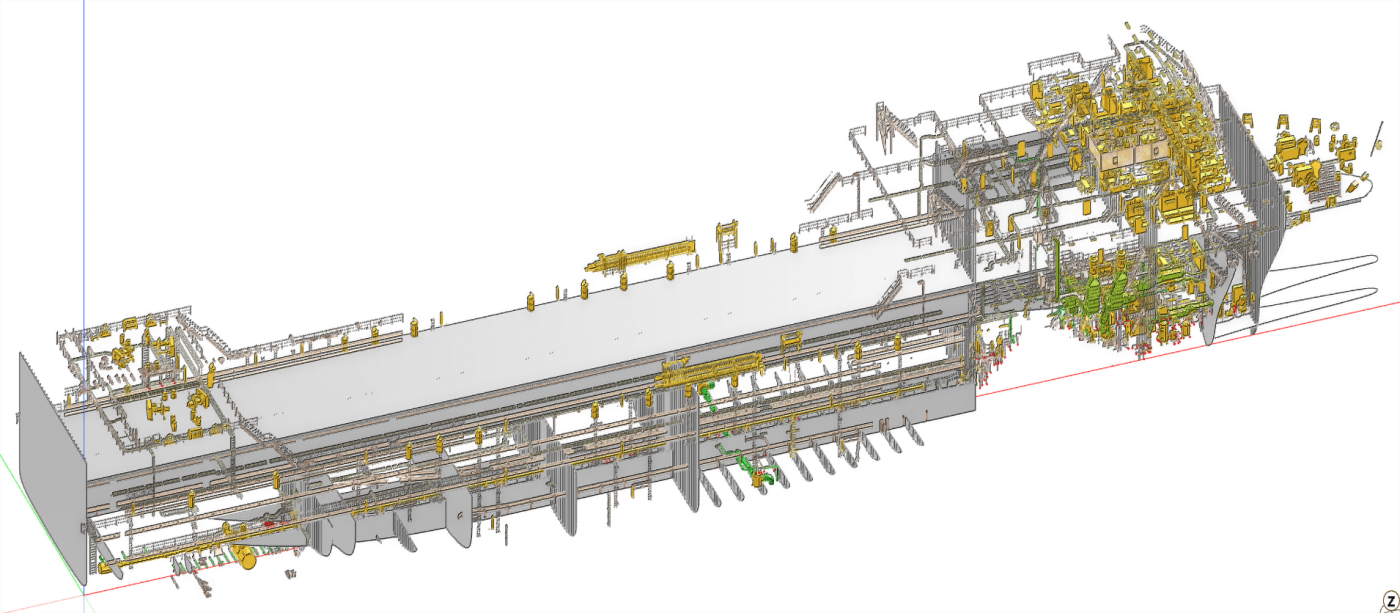

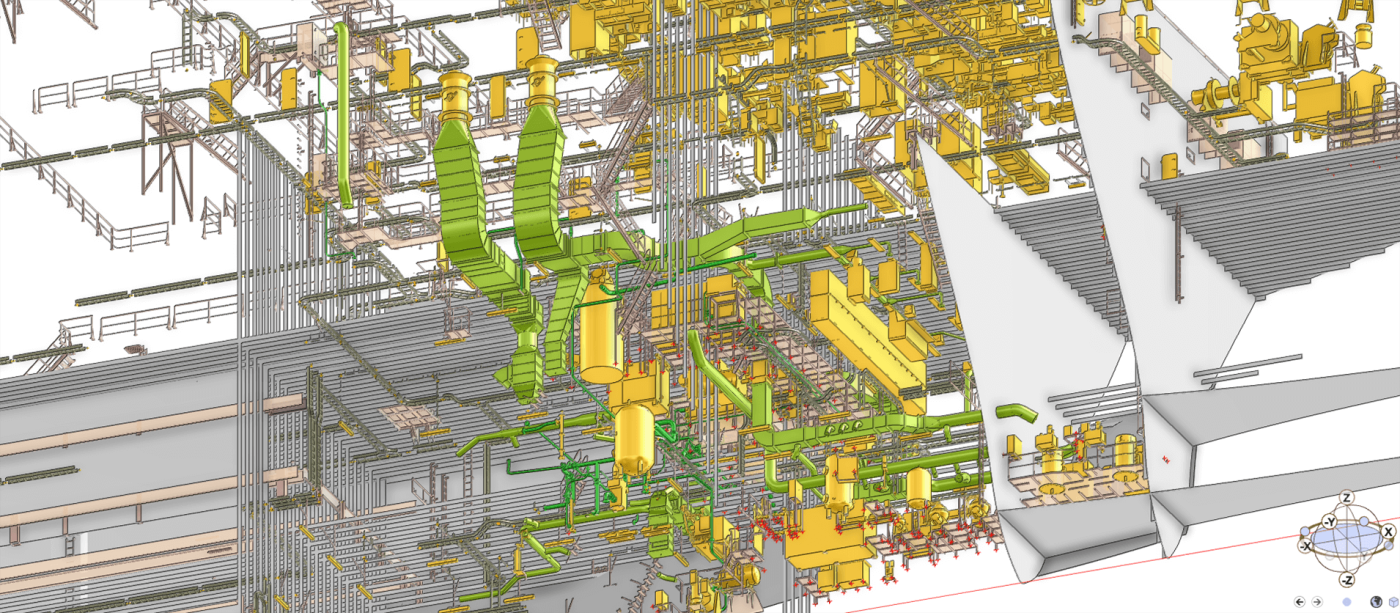

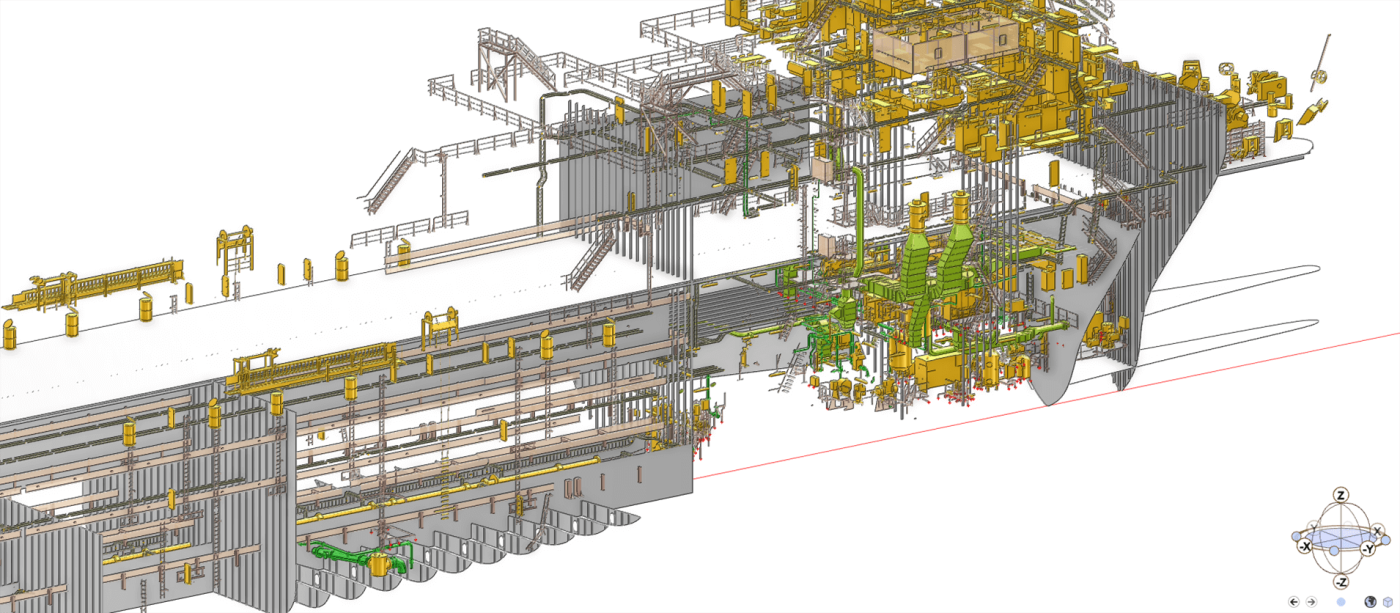

 _ Outfitting Design WITH AVEVA E3D consists of efficient modules such as design piping, pipe support, equipment, structural, HVAC, cable, and cable tray … , draw to make drawing, in additional the paragon module help administration team to customize the catalogue and specification accordingly project standard, with full of function like that, the design team create complete and accurate 3D outfitting models easily.

     _ Aveva E3D with PML code, administrator can be developed and customize further in the Outfitting Detailed Design module, including extracting complete information for production such as GA drawing, ISO drawing, MTO material and another information.

     _ Integration with Aveva HULL design module with the same DABACON help outfitting designer to communicate with HULL design team and check clashing with HULL elements effectively, guarantee high-quality 3D models.

     _ Some applications can integrate with Aveva E3D outfitting such as Aveva engineering, Aveva diagram, Aveva schematic model manager, Aveva electrical and Aveva instrument, bring the integration 1D, 2D, 3D, make the database more accurate.
